ArcAngel^®

Flexible Copper-Clad Steel (CCS) conductor for demanding utility applications

Product Data Sheets

Flexible grounding for complex substation layouts

ArcAngel is engineered for easier installation, high fault performance, and proactive maintenance in complex grounding layouts.

ArcAngel is Copperweld’s high-strand-count CCS conductor, engineered to bend easily during installation while combining the electrical performance and corrosion resistance of copper with the strength of steel. With an optional ground fault indicator strand that supports faster inspection and maintenance visibility, ArcAngel helps utilities keep critical grounding systems performing over time. Flexible and durable, ArcAngel helps utilities strengthen critical infrastructure from the ground up.

Features and Benefits:

Increased Flexibility – High strand count improves ease of installation without sacrificing strength, simplifying routing through congested substation layouts.

Improved Electrical Performance – Ground fault performance equivalent to copper, with greater mechanical durability for demanding utility grounding applications.

Ground Fault Indicator Strand – Optional fault-identification strand changes color when a fault occurs, helping crews quickly identify damage and simplify maintenance.

Superior Strength – With the strength of steel, CCS resists stretching, breakage, and deformation under mechanical and thermal stress.

Reduced Theft Incentive – With a rugged steel core and lower scrap value than solid copper, CCS helps reduce theft incentives in remote or unmonitored locations.

Corrosion Resistance – ArcAngel is engineered to perform in demanding above-grade and below-grade grounding applications.*

Service life varies based on soil conditions, installation environment, and exposure factors. Underground performance may be impacted by soil chemistry, pH, moisture, and circulating currents. These conditions influence the performance of all grounding conductor materials, including copper and CCS.

ArcAngel Product Specifications

with copper comparison

Part Name	Part #	Strands	Fault Current*	Nom. Break Load**		Weight/Length		Overall Diameter
Part Name	Part #	Strands	kA @ 500 ms	lbf	kgf	lb/kft	kg/km	in	mm
Century^™ 19 No. 4	Q6C19X4A	19	108.8	28,608	12,976	2,255	3,356	1.022	25.96
ArcAngel 101	CWAA101	61	101.0	25,089	11,380	1,905	2,835	0.941	23.89
500 kcmil Copper	CUZ37X1162A	37	101.0	15,240	6,913	1,544	2,298	0.796	20.22
Century^™ 19 No. 5	Q6C19X5A	19	87.1	22,333	10,130	1,788	2,661	0.910	23.10
ArcAngel 73	CWAA73	61	73.0	17,568	7,969	1,382	2,056	0.801	20.35
350 kcmil Copper	CUZ37X0973A	37	73.0	10,680	4,844	1,081	1,609	0.676	17.17
Century^™ 19 No. 6	Q6C19X6A	19	69.7	18,810	8,532	1,418	2,110	0.810	20.57
Century^™ 19 No. 7	Q6C19X7A	19	55.8	14,107	6,399	1,125	1,674	0.722	18.33
ArcAngel 52	CWAA52	61	52.0	13,725	6,226	987	1,468	0.677	17.19
250 kcmil Copper	CUZ37X0822A	37	52.0	7,627	3,460	772	1,149	0.572	14.53
Century^™ 19 No. 8	Q6C19X8A	19	44.6	11,902	5,399	892	1,327	0.643	16.32
ArcAngel 44	CWAA44	61	44.0	10,541	4,781	828	1,232	0.620	15.75
4/0 Copper	CUZ19X1065A	19	44.0	5,983	2,714	653	972	0.546	13.40
Century^™ 7 No. 4	Q6C7X04A	7	40.1	10,540	4,781	827	1,231	0.613	15.57
Century^™ 19 No. 9	Q6C19X9A	19	35.6	9,251	4,196	707	1,052	0.572	14.53
Century^™ 7 No. 5	Q6C7X05A	7	32.1	8,228	3,732	656	977	0.528	13.86
4Thought	Q6C19X1055A	19	30.4	7,952	3,607	601	895	0.510	13.40
Century^™ 19 No. 10	Q6C19X10A	19	28.4	7,421	3,366	561	835	0.910	12.94
ArcAngel 28	CWAA28	19	28.0	7,097	3,219	524	780	0.493	12.51
2/0 Copper	CUZ19X0837A	19	28.0	3,763	1,707	411	611	0.402	10.21
Century^™ 7 No. 6	Q6C7X06A	7	25.7	6,930	3,143	520	774	0.486	12.34
ArcAngel 22	CWAA22	19	22.0	5,472	2,482	428	637	0.445	11.30
1/0 Copper	CUZ19X0745A	19	22.0	3,221	1,461	323	481	0.368	9.36
Century^™ 7 No. 7	Q6C7X07A	7	20.6	5,198	2,358	413	615	0.433	11.00
Century^™ 19 x 0860A	Q6C19X0860A	19	20.3	4,959	2,249	400	595	0.430	10.92
Century^™ 19 x 0827	Q6C19X0827A	19	19.6	4,738	2,149	365	543	0.414	10.50
Century^™ 7 x 1379	Q6C7X1379A	7	18.8	4,568	2,072	561	835	0.414	10.51
Century^™ 7 No. 8	Q6C7X08A	7	16.4	4,385	1,989	327	487	0.386	9.79
Century^™ 19 x 075	Q6C19X075A	19	15.5	4,257	1,931	304	452	0.375	9.53
ArcAngel 14	CWAA14	19	14.0	4,019	1,823	265	394	0.350	8.89
No. 2 Copper	CUZ7X0974A	7	14.0	1,928	875	205	305	0.258	6.54
Century^™ 7 No. 9	Q6C7X09A	7	13.1	3,408	1,546	386	574	0.343	8.72
Century^™ 7 No. 10	Q6C7X10A	7	10.5	2,734	1,240	206	306	0.306	7.76
No. 4 Copper	CUZ2043A	1	9.0	1,200	544	129	192	0.204	5.19
Century^™ No. 2	Q6C2576A	1	8.9	2,561	1,162	186	277	0.258	6.54
Century^™ 7 x 0860A	Q6C7X0860A	7	7.5	2,069	938	147	219	0.258	6.55
Century^™ No. 4	Q6C2043A	1	5.7	1,673	759	117	174	0.204	5.19
No. 6 Copper	CUZ1620A	1	5.0	763	346	81	121	0.162	4.11
Century^™ 7 x 068	Q6C7X0680A	7	4.7	1,295	587	91	135	0.204	5.18
Century^™ No. 6	Q6C1620A	1	3.7	1,100	499	74	110	0.162	4.11
No. 8 Copper	CUZ1285A	1	3.0	499	226	51	76	0.129	3.28
Century^™ No. 8	Q6C1285A	1	2.5	696	316	47	69	0.129	3.28
* Short Circuit Fault Currents are shown in accordance with IEEE80:2013, Table 6, X/R=0, (in kA) ** Breakload Tensile Strength is based upon tested results per ASTM 2.03.

Product Applications

Substation
Grounding grids and ground mats where added flexibility improves installation efficiency
Equipment grounding and bonding in congested or complex substation layouts
Fence grounding and perimeter grounding systems where tin-coated conductors blend visually with galvanized fencing and structures
Grounding applications that benefit from a visible indicator strand to support inspection, maintenance awareness, and worker safety
Substation expansions, retrofits, and brownfield upgrades
Transmission & Distribution
Transmission tower grounding where routing flexibility is beneficial
Grounding applications with tight routing, bends, or complex hardware
Bonding of steel structures and hardware
Renewable Energy
Solar farm grounding grids and equipment grounding
Wind turbine grounding and foundation bonding
Collection system grounding for solar and wind projects
Grounding for remote or unmanned solar and wind installations

Finish Options

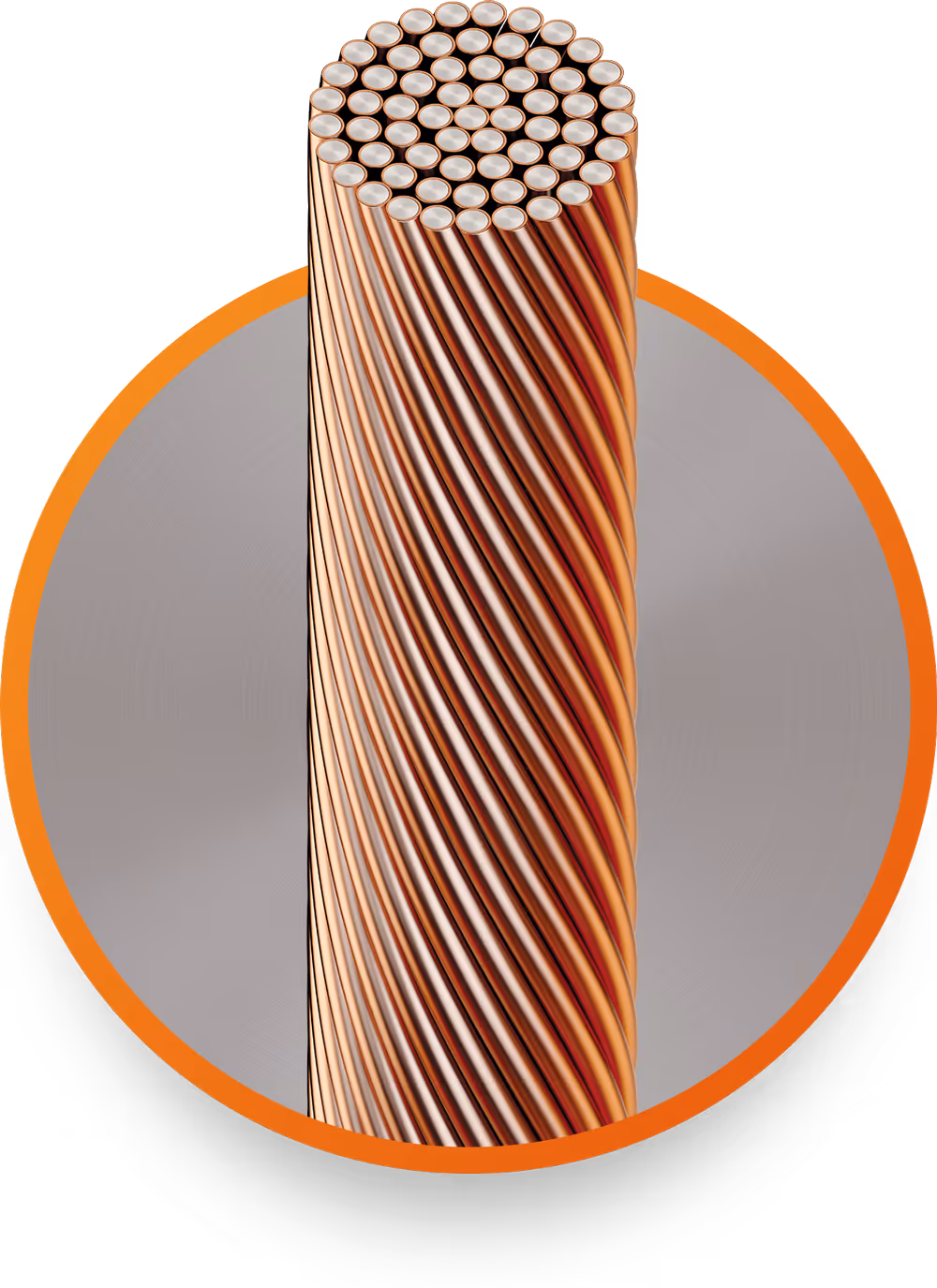

Bare

Our original uncoated CCS finish

Bare Copperweld Copper-Clad Steel (CCS) combines the mechanical strength of steel with the conductivity and corrosion resistance of copper. Continuous copper cladding is metallurgically bonded to a steel core, creating a grounding conductor built for long service life in demanding environments.

Features and Benefits:

Copper-Clad Steel construction delivers high strength with reliable grounding performance
Copper cladding resists corrosion in buried and exposed applications
Proven long-term durability in a wide range of soil conditions
Suitable for substation, transmission, distribution, and renewable grounding systems

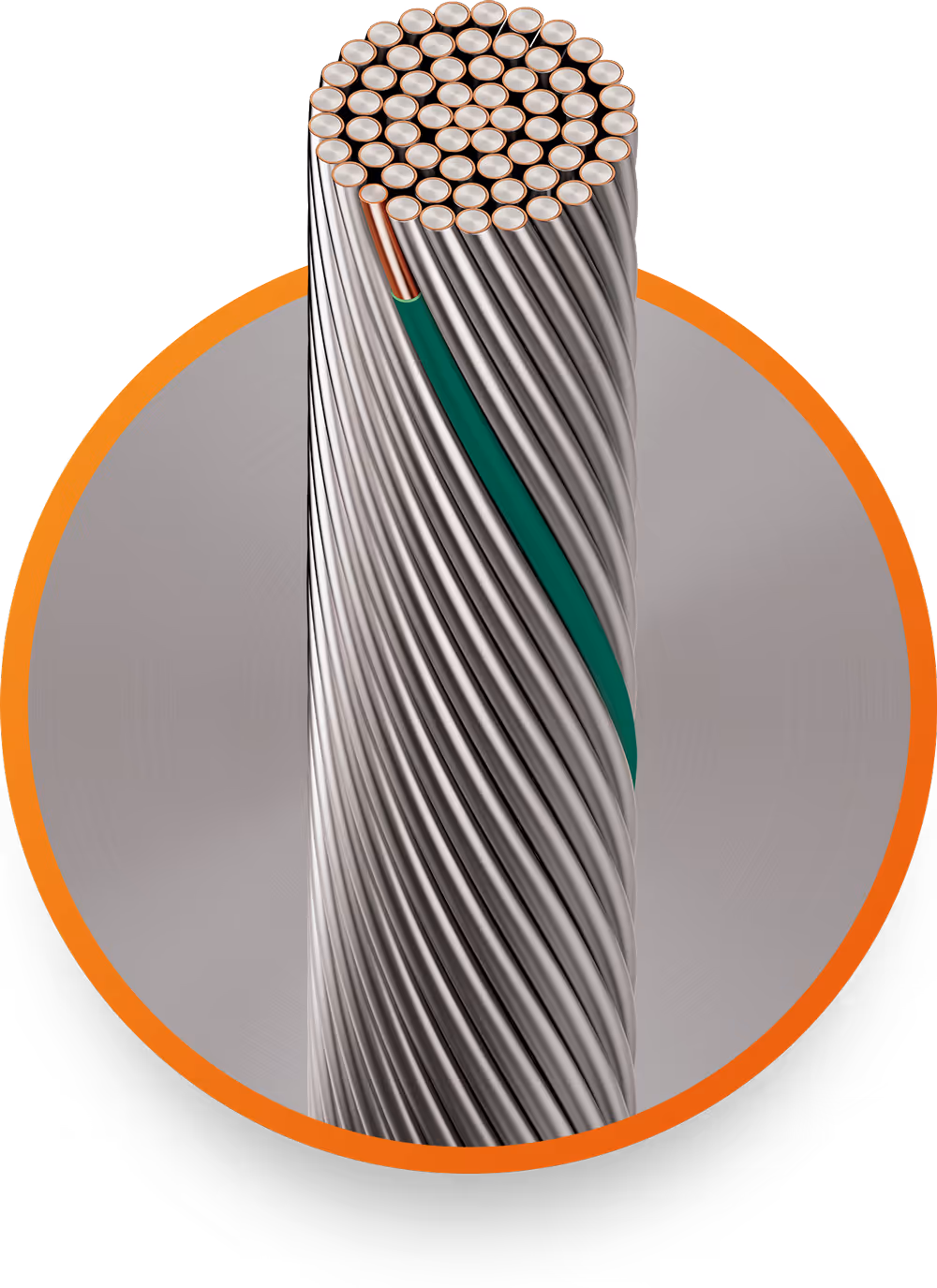

Indicator

Visual grounding aid to support inspection, maintenance, and field awareness

ArcAngel’s optional indicator strand finish provides a clear visual reference within grounding systems, helping crews quickly identify grounding conductors during installation, inspection, and maintenance activities.

Features and Benefits:

High-visibility indicator strand integrated into the stranded grounding conductor
Tin-coated finish helps the conductor visually blend with galvanized fencing and structures
Visual cues help signal to thieves that the conductor is not solid copper
Indicator strand supports faster identification during inspection and maintenance activities

Standards and Certifications

IEEE Std-80, IEEE Std-837 EMF
All bimetallics processed at Copperweld’s ISO 9001:2015 facility in TN
