Century Grid^®

High-strength Copper-Clad Steel (CCS) grounding conductors

Product Data Sheets

Designed for long-term performance

Century is engineered for unmatched durability, long service life, and dependable grounding in the toughest utility environments.

Century delivers high-strength grounding performance for utilities that prioritize durability in the harshest conditions. Designed to resist mechanical damage, deformation, and long-term environmental exposure, Century supports dependable grounding across substations, transmission corridors, and remote infrastructure. With Bare, Camo, and Hide finish options, utilities can match physical visibility and site needs.

Features and Benefits:

Unmatched Durability – Engineered for maximum mechanical durability, Century withstands demanding installs where resiliency is essential.

Superior Strength – With the strength of steel, CCS resists stretching, breakage, and deformation under mechanical and thermal stress.

Reduced Theft Incentives – With a rugged steel core and lower scrap value than solid copper, CCS helps reduce theft incentives in remote or unmonitored locations.

Corrosion Resistance – Copperweld CCS conductors are engineered to perform in demanding above-grade and below-grade grounding applications.*

Bare, Camo, or Hide Finishes – Available in multiple finish options, Century helps utilities match site visibility needs and installation environments.

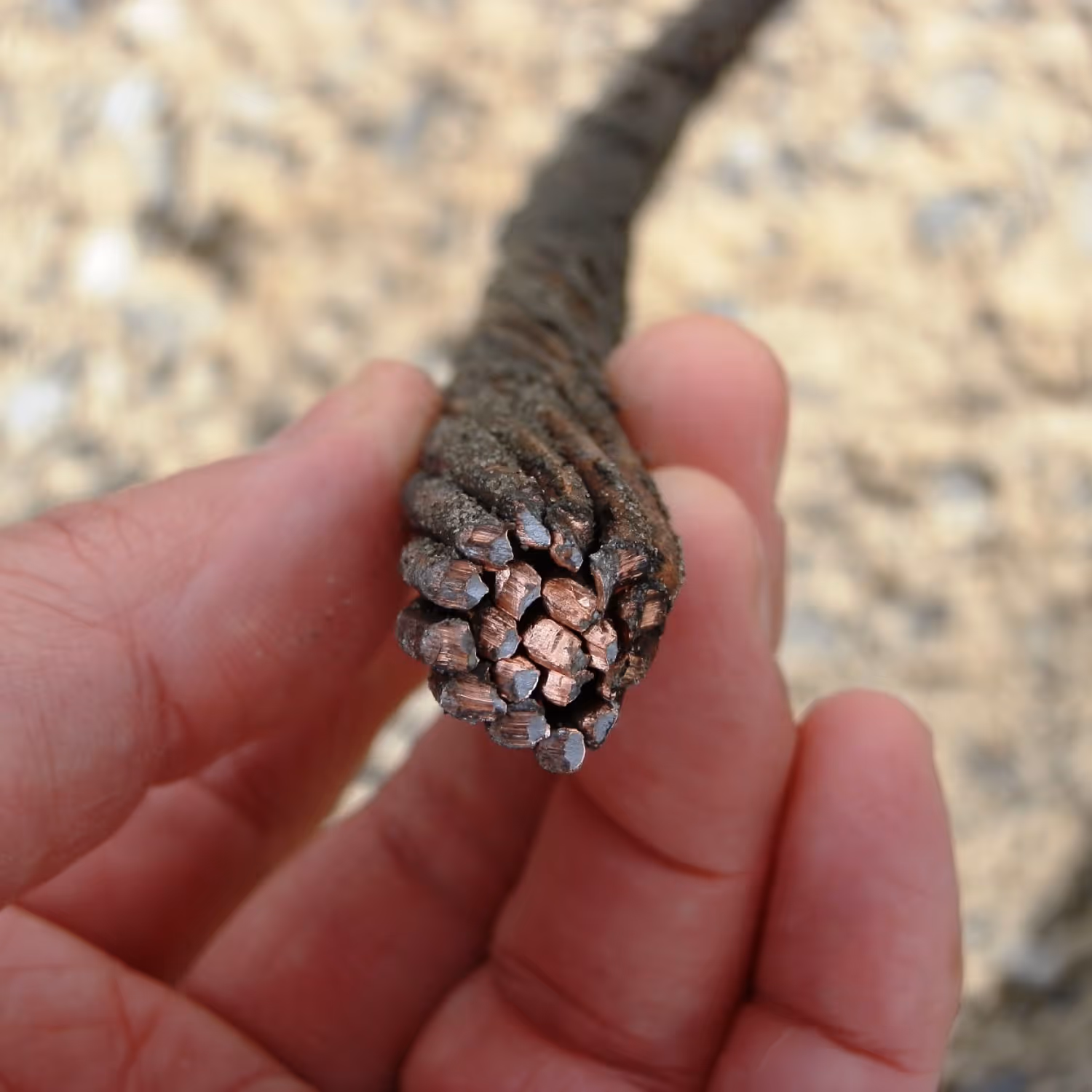

Service life varies based on soil conditions, installation environment, and exposure factors. Underground performance may be impacted by soil chemistry, pH, moisture, and circulating currents. These conditions influence the performance of all grounding conductor materials, including copper and CCS.

Century Product Specifications

with copper comparison

Part Name	Part #	Strands	Fault Current*	Nom. Break Load**		Weight/Length		Overall Diameter
Part Name	Part #	Strands	kA @ 500 ms	lbf	kgf	lb/kft	kg/km	in	mm
Century 19 No. 4	Q6C19X4A	19	108.8	28,608	12,976	2,255	3,356	1.022	25.96
ArcAngel^™ 101	CWAA101	61	101.0	25,089	11,380	1,905	2,835	0.941	23.89
500 kcmil Copper	CUZ37X1162A	37	101.0	15,240	6,913	1,544	2,298	0.796	20.22
Century 19 No. 5	Q6C19X5A	19	87.1	22,333	10,130	1,788	2,661	0.910	23.10
ArcAngel^™ 73	CWAA73	61	73.0	17,568	7,969	1,382	2,056	0.801	20.35
350 kcmil Copper	CUZ37X0973A	37	73.0	10,680	4,844	1,081	1,609	0.676	17.17
Century 19 No. 6	Q6C19X6A	19	69.7	18,810	8,532	1,418	2,110	0.810	20.57
Century 19 No. 7	Q6C19X7A	19	55.8	14,107	6,399	1,125	1,674	0.722	18.33
ArcAngel^™ 52	CWAA52	61	52.0	13,725	6,226	987	1,468	0.677	17.19
250 kcmil Copper	CUZ37X0822A	37	52.0	7,627	3,460	772	1,149	0.572	14.53
Century 19 No. 8	Q6C19X8A	19	44.6	11,902	5,399	892	1,327	0.643	16.32
ArcAngel^™ 44	CWAA44	61	44.0	10,541	4,781	828	1,232	0.620	15.75
4/0 Copper	CUZ19X1065A	19	44.0	5,983	2,714	653	972	0.546	13.40
Century 7 No. 4	Q6C7X04A	7	40.1	10,540	4,781	827	1,231	0.613	15.57
Century 19 No. 9	Q6C19X9A	19	35.6	9,251	4,196	707	1,052	0.572	14.53
Century 7 No. 5	Q6C7X05A	7	32.1	8,228	3,732	656	977	0.528	13.86
4Thought	Q6C19X1055A	19	30.4	7,952	3,607	601	895	0.510	13.40
Century 19 No. 10	Q6C19X10A	19	28.4	7,421	3,366	561	835	0.910	12.94
ArcAngel^™ 28	CWAA28	19	28.0	7,097	3,219	524	780	0.493	12.51
2/0 Copper	CUZ19X0837A	19	28.0	3,763	1,707	411	611	0.402	10.21
Century 7 No. 6	Q6C7X06A	7	25.7	6,930	3,143	520	774	0.486	12.34
ArcAngel^™ 22	CWAA22	19	22.0	5,472	2,482	428	637	0.445	11.30
1/0 Copper	CUZ19X0745A	19	22.0	3,221	1,461	323	481	0.368	9.36
Century 7 No. 7	Q6C7X07A	7	20.6	5,198	2,358	413	615	0.433	11.00
Century 19 x 0860A	Q6C19X0860A	19	20.3	4,959	2,249	400	595	0.430	10.92
Century 19 x 0827	Q6C19X0827A	19	19.6	4,738	2,149	365	543	0.414	10.50
Century 7 x 1379	Q6C7X1379A	7	18.8	4,568	2,072	561	835	0.414	10.51
Century 7 No. 8	Q6C7X08A	7	16.4	4,385	1,989	327	487	0.386	9.79
Century 19 x 075	Q6C19X075A	19	15.5	4,257	1,931	304	452	0.375	9.53
ArcAngel^™ 14	CWAA14	19	14.0	4,019	1,823	265	394	0.350	8.89
No. 2 Copper	CUZ7X0974A	7	14.0	1,928	875	205	305	0.258	6.54
Century 7 No. 9	Q6C7X09A	7	13.1	3,408	1,546	386	574	0.343	8.72
Century 7 No. 10	Q6C7X10A	7	10.5	2,734	1,240	206	306	0.306	7.76
No. 4 Copper	CUZ2043A	1	9.0	1,200	544	129	192	0.204	5.19
Century No. 2	Q6C2576A	1	8.9	2,561	1,162	186	277	0.258	6.54
Century 7 x 0860A	Q6C7X0860A	7	7.5	2,069	938	147	219	0.258	6.55
Century No. 4	Q6C2043A	1	5.7	1,673	759	117	174	0.204	5.19
No. 6 Copper	CUZ1620A	1	5.0	763	346	81	121	0.162	4.11
Century 7 x 068	Q6C7X0680A	7	4.7	1,295	587	91	135	0.204	5.18
Century No. 6	Q6C1620A	1	3.7	1,100	499	74	110	0.162	4.11
No. 8 Copper	CUZ1285A	1	3.0	499	226	51	76	0.129	3.28
Century No. 8	Q6C1285A	1	2.5	696	316	47	69	0.129	3.28
* Short Circuit Fault Currents are shown in accordance with IEEE80:2013, Table 6, X/R=0, (in kA) ** Breakload Tensile Strength is based upon tested results per ASTM 2.03.

Product Applications

Substation
Grounding grids and ground mats
Equipment grounding and bonding (transformers, breakers, steel structures)
Fence grounding and perimeter grounding systems
Substation expansions, upgrades, and retrofits
Long-term grounding in high-traffic or mechanically demanding areas
Grounding applications where Camo or Hide finishes help reduce visual contrast with gravel or surrounding infrastructure
Transmission & Distribution
Transmission tower grounding
Distribution pole grounding
Overhead grounding where long spans and mechanical strength matter
Bonding of steel structures and hardware
Grounding conductors where Camo or Hide finishes help visually blend into natural or built environments
Renewable Energy
Solar farm grounding grids and equipment grounding
Wind turbine grounding and foundation bonding
Collection system grounding for solar and wind projects
Grounding for remote or unmanned solar and wind installations
Grounding applications where Camo or Hide finishes help minimize visual impact across large, open sites

Finish Options

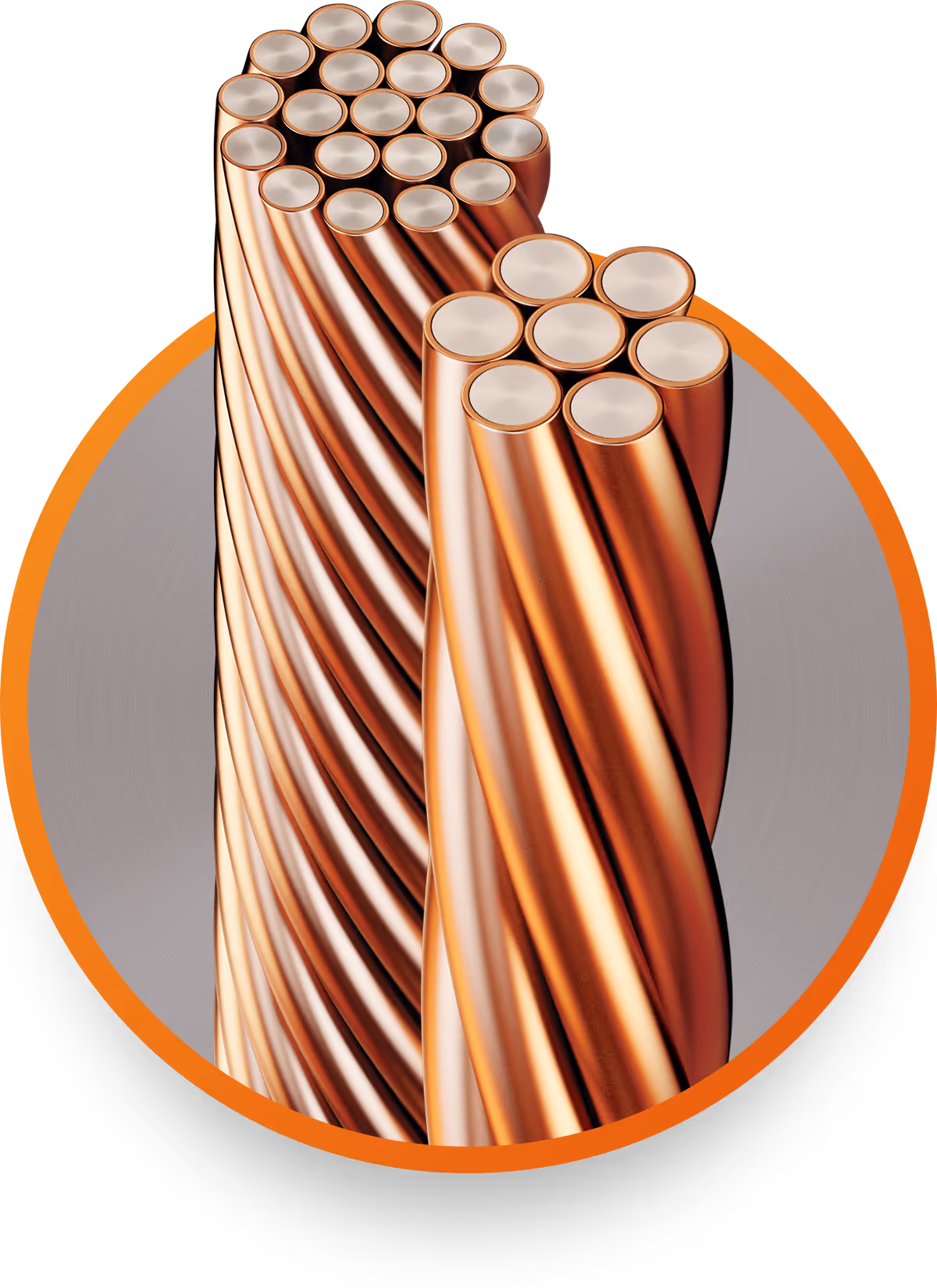

Bare

Our original uncoated CCS finish

Bare Copperweld^® Copper-Clad Steel (CCS) combines the mechanical strength of steel with the conductivity and corrosion resistance of copper. Continuous copper cladding is metallurgically bonded to a steel core, creating a grounding conductor built for long service life in demanding environments.

Features and Benefits:

Connector-ready — no stripping, sanding, or surface preparation required
Installed and terminated like standard copper conductors

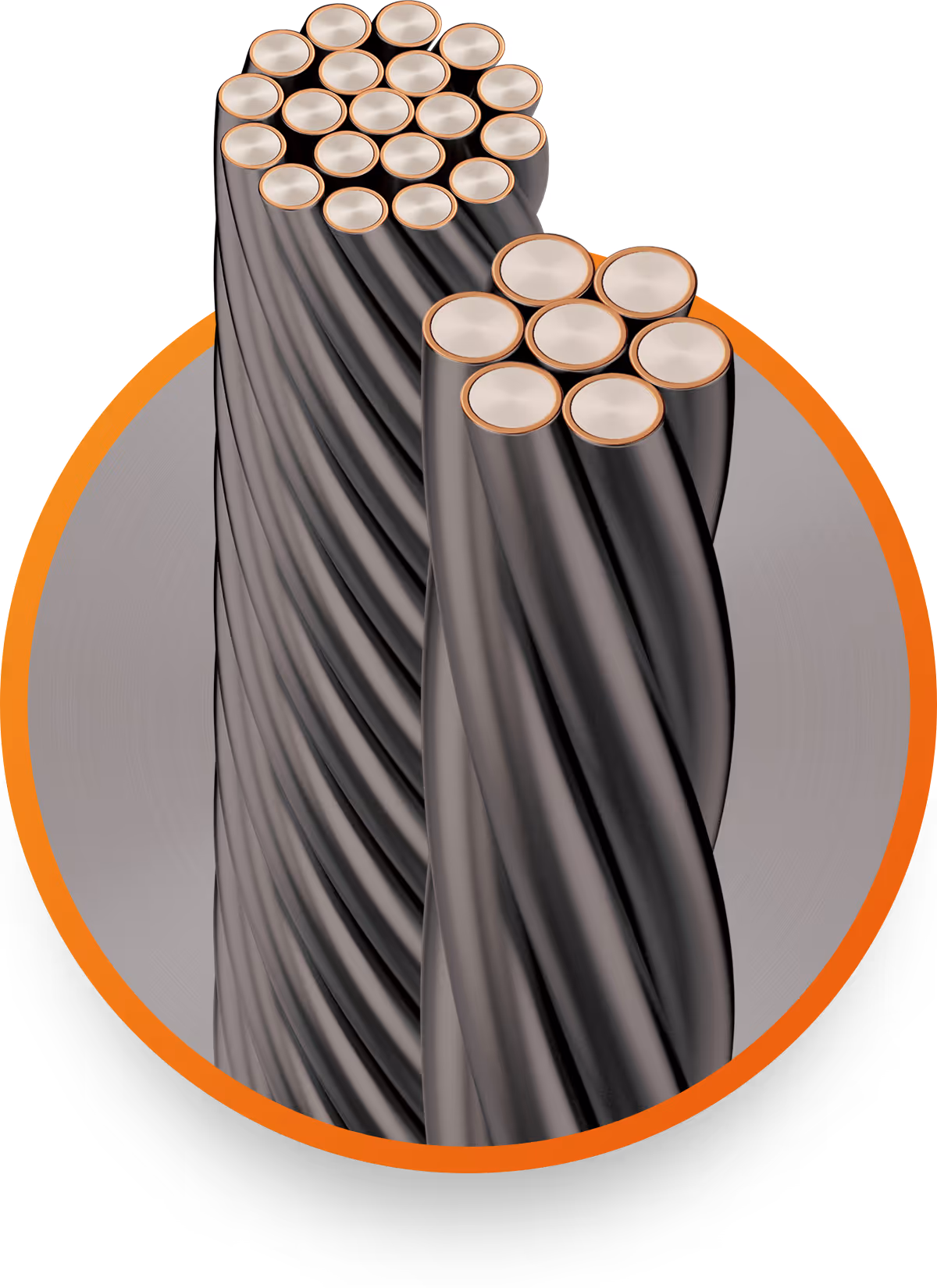

Camo^™

Camoflauge your conductor into the surrounding environment

Copperweld Camo^™ is a 100% copper finish applied using a proprietary process that alters the surface appearance of the conductor. The result is a grounding conductor that performs like copper while visually blending into steel and galvanized environments, helping reduce theft incentives.

Features and Benefits:

Connector-ready — no stripping, sanding, or surface preparation required
Installed and terminated like standard copper conductors

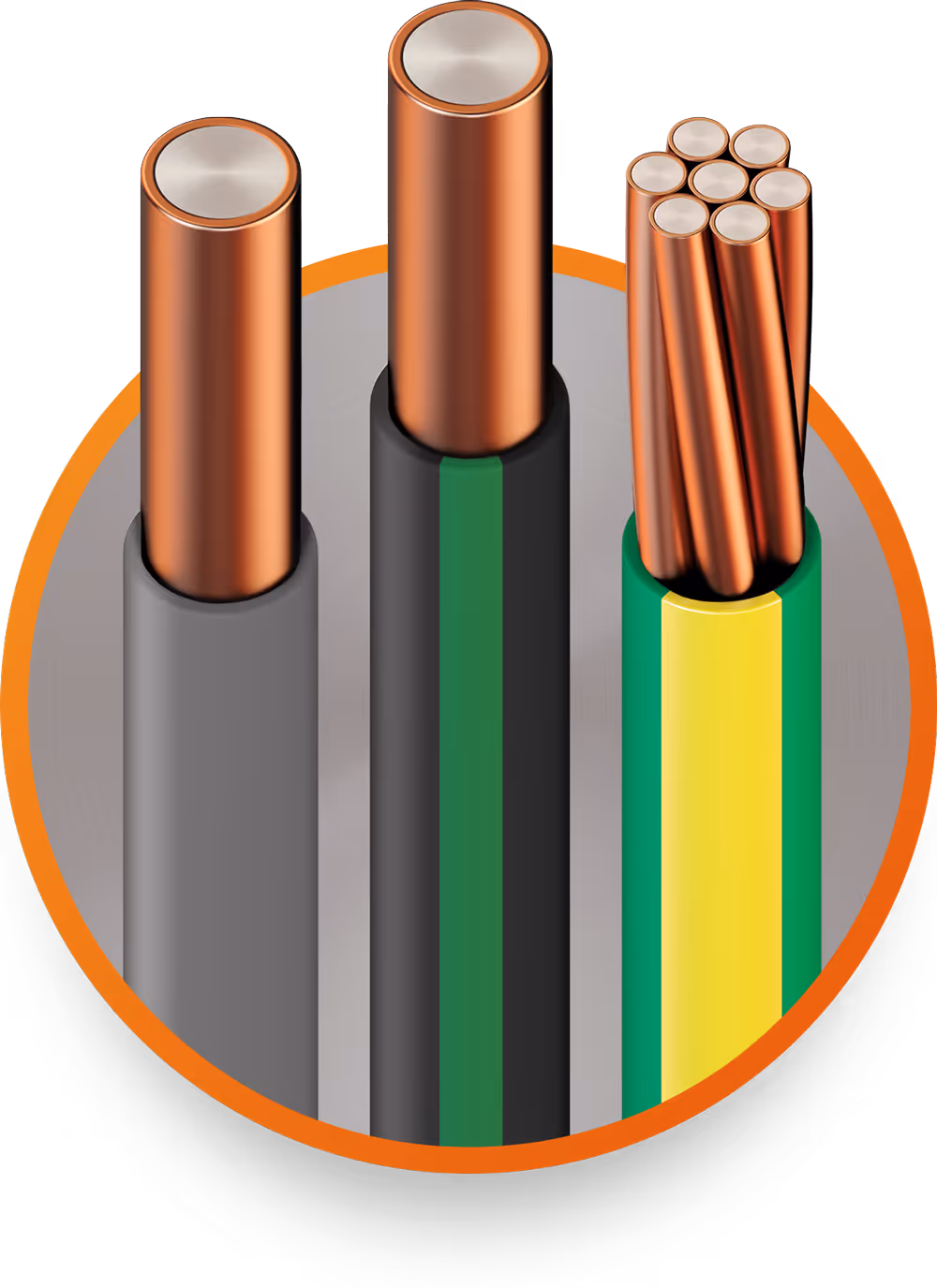

Hide^™

Hide your grounding conductor in plain sight

Copperweld Hide is a PVC-jacketed Copper-Clad Steel grounding conductor designed to visually blend into its surroundings while providing clear, sequential footage markings for installation and maintenance visibility.

Specifications:

Grounding Conductor		Copperweld Copper-Clad Steel (CCS)
Insulation Material		PVC with UL 720 sunlight resistance
Insulation Thickness		25 mil, +/- 5 mil
Color Options		Black with Parallel Green Stripe Green with Parallel Yellow Stripes Gray Jacket
Polymer Tensile		Min. 1500 psi
Polymer Elongation		Min. 100%
Oxygen Index %		32, per ASTM D-2863
Brittleness Temp.		Min. -40° C
Service Life		30 years, or first high-energy fault
Dielectric*		No dielectric insulation value
Harmonized Marking		Sequential footage markings along the full length of the cable
Packaging		Spools, hand coils, or wooden reels
* Contact Copperweld for dielectric information on specific constructions

Standards and Certifications

ASTM B-193, ASTM B-452, ASTM B-227, ASTM B-228 and ASTM B-910
RUS Listed: Century 19 No. 9, Century 7 No. 10, Century No. 2
NESC Part 93 (Lightning)
All bimetallics processed at Copperweld’s ISO 9001:2015 facility in TN

Century Grid®

Designed for long-term performance

Features and Benefits:

Century Product Specifications

with copper comparison

Product Applications

Finish Options

Bare

Features and Benefits:

Camo™

Features and Benefits:

Hide™

Specifications:

Standards and Certifications

Brochure

Century Grid Brochure

Spec Sheets

Century 19 No. 5 Spec Sheet

Century 19 No. 6 Spec Sheet

Century 19 No. 9 Spec Sheet

Century 7 No. 10 Spec Sheet

Century 7 No. 6 Spec Sheet

Century 7 x 068 Spec Sheet

Century 7 x 0860 Spec Sheet

Century No. 4 Spec Sheet

Century No. 6 Spec Sheet

Reference Tables

Grounding Selection Guide

Copper-Clad Steel (CCS) 21% Reference Tables

Copper-Clad Steel (CCS) 30% Reference Tables

Copper-Clad Steel (CCS) 40% Reference Tables

Copper-Clad Steel (CCS) – Physical and Electrical Tables

Lasting performance

Theft-deterrent

Stronger than copper

Start your order

Blog articles

View more blog posts

Explore more Power Grid products

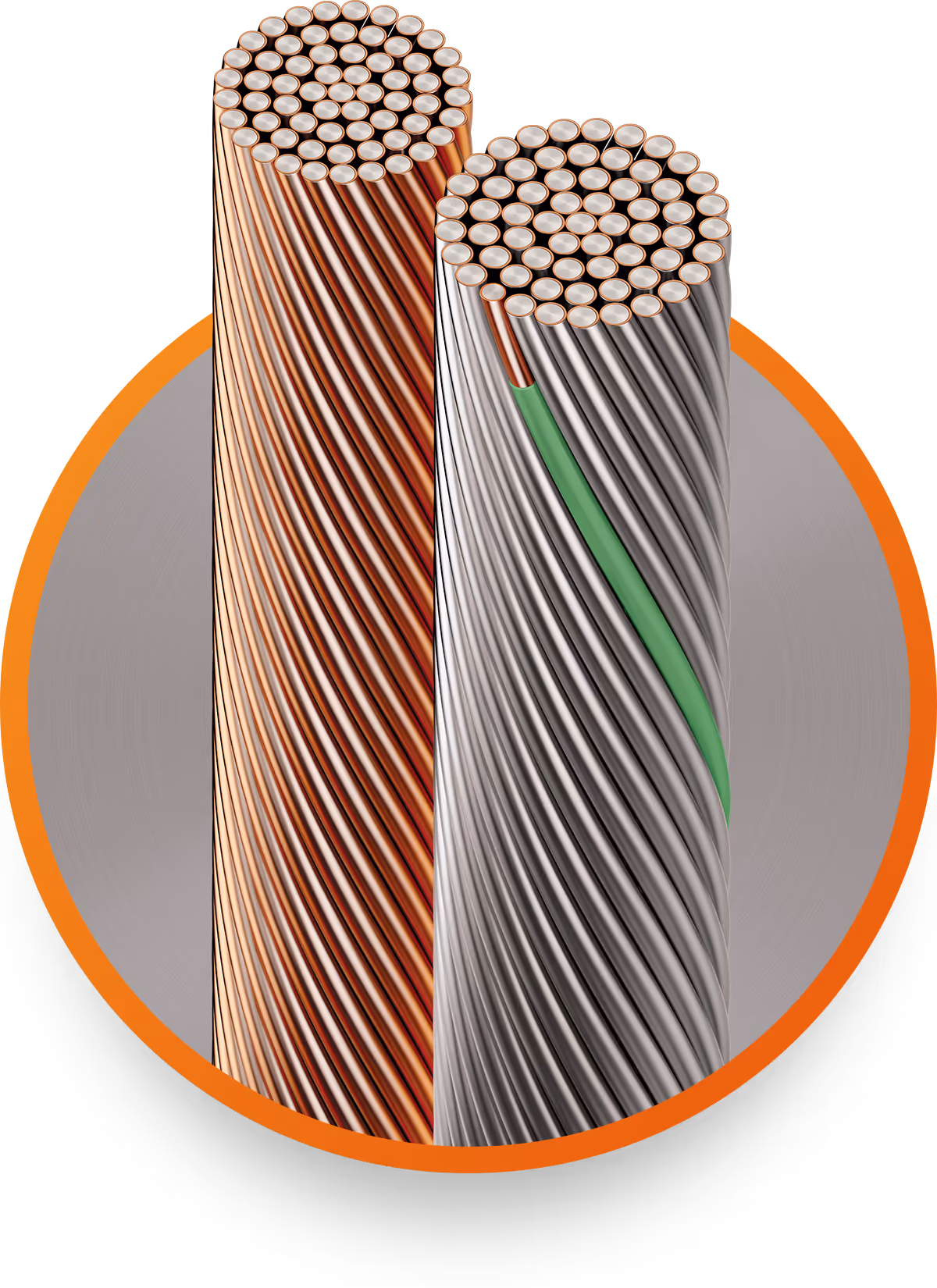

ArcAngel
